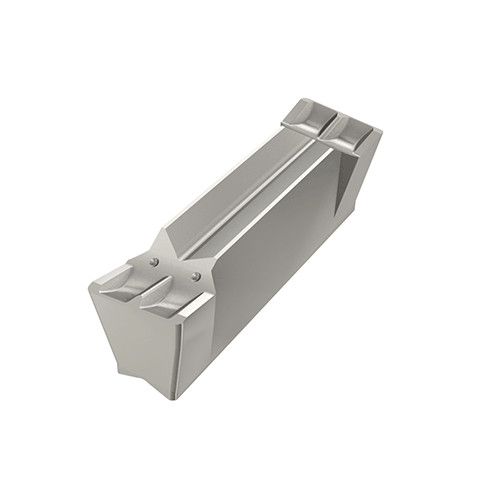

DGN 5003W IC328
Parting Off Insert; 0.197″ CW × 0.748″ Length × 0.0118″ Corner Radius ; Neutral ; Carbide ; TiCN ; IC328

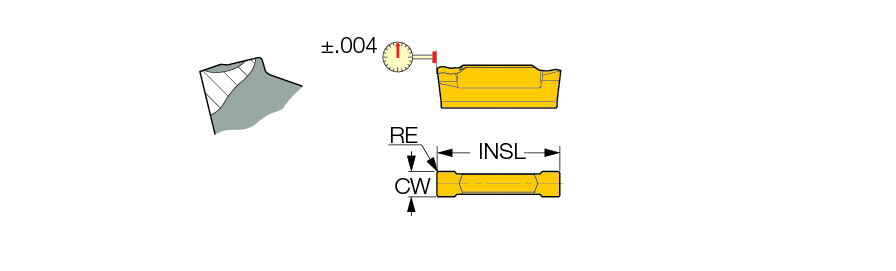

| Cutting Width (CW) | 0.197″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.013 ″/rev |
| Overall Length (OAL) | 0.748″ | Min. Grooving Feed (fg(min)) | 0.0047 ″/rev |
| Insert Length (INSL) | 0.748″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Parting & grooving double-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Used on hard materials and interrupted cuts. | Country of Origin | Israel |
| Remarks | No depth limit |
Shipping Info
Package Weight
0.014
