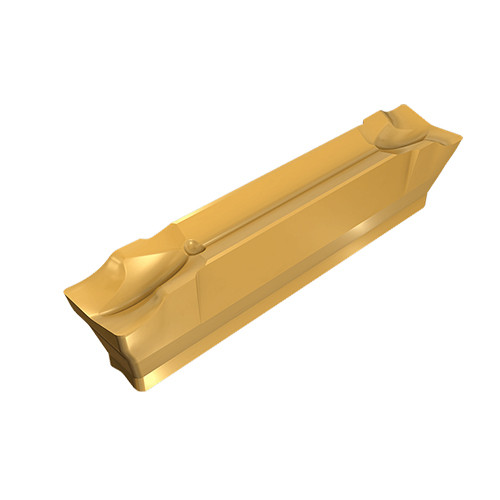

HGN 3002J IC354
Parting Off Insert; 0.118″ CW × 0.634″ Length × 0.0079″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC354

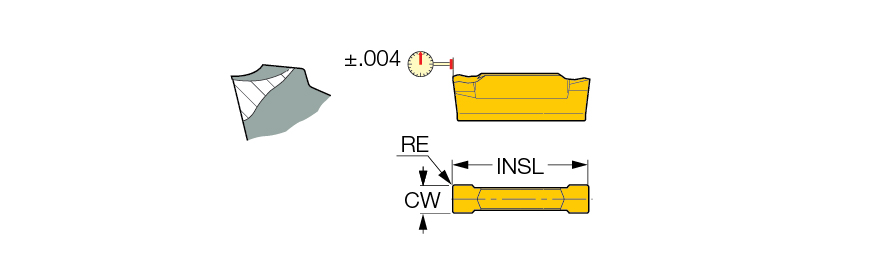

| Cutting Width (CW) | 0.118″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.0059 ″/rev |
| Overall Length (OAL) | 0.634″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Insert Length (INSL) | 0.634″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC354 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Parting & grooving, double-sided insert with a J-type chipformer. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds. | Country of Origin | Israel |
| Remarks | No depth limit |
Shipping Info
Package Weight
0.006
