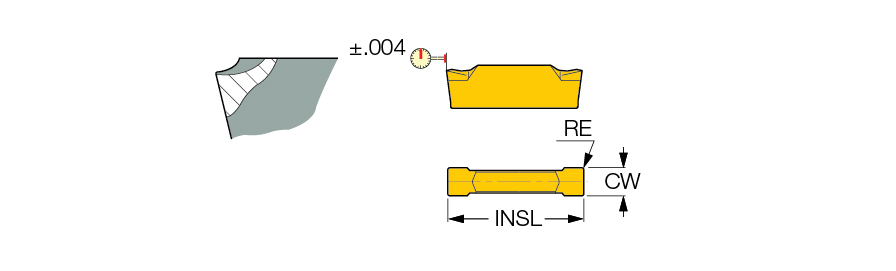

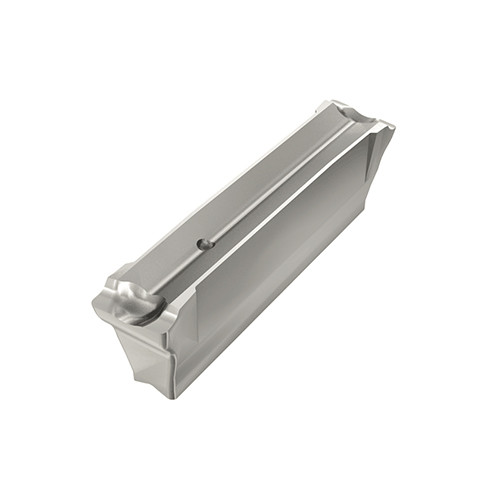

DGN 4003UA IC354
Parting Off Insert; 0.157″ CW × 0.0118″ Corner Radius ; Neutral ; Carbide ; TiCN ; IC354
| Cutting Width (CW) | 0.157″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Overall Length (OAL) | 0.764″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Insert Length (INSL) | 0.764″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC354 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The narrow chipformer design ensures short deformed chips. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
