GFR 3U - 4D IC354

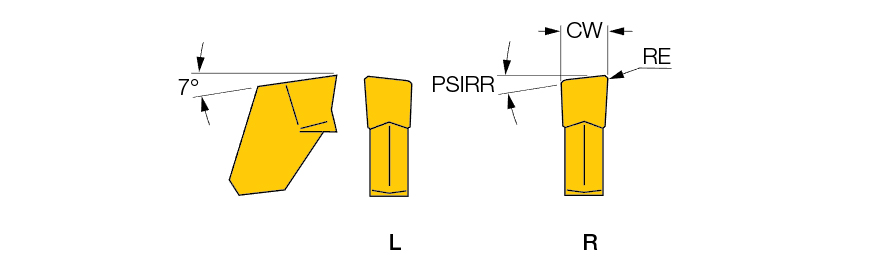

| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0043 ″/rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Coating | TiCN | Chip Breaker Type | U |
| Grade | IC354 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Angle | 12 Degrees |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Groove Turn & Parting Inserts | Parting | | Body Material | Carbide |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar problematic materials. The narrow chipformer ensures short deformed chips. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
