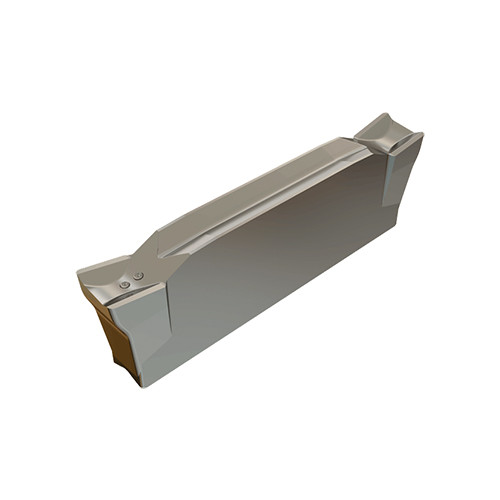

DGR 4003C-4D IC354
Parting Off Insert; 0.157″ CW × 0.74″ Length × 0.0118″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC354

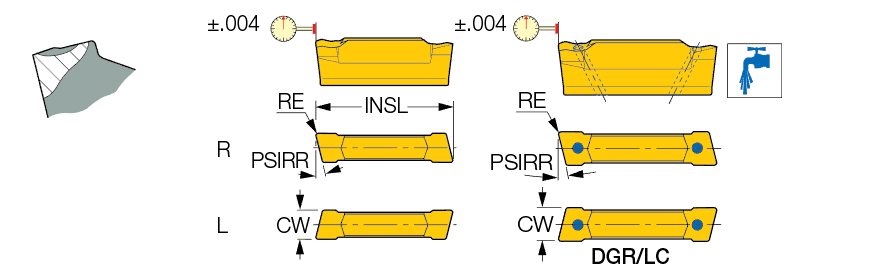

| Cutting Width (CW) | 0.157″ | Application | | Parting | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 0.74″ | Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Insert Length (INSL) | 0.74″ | Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Angle | 12 Degrees |
| Grade | IC354 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |

Product Features
| Family Description | First choice for the parting bars, hard materials and tough applications. A positive rake, single cavity with nagative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds. | Country of Origin | Israel |
| Remarks | The feed values for grade IC20 should be decreased by 50%. |
Shipping Info
Package Length
.73800
Package Width
.19600
Package Height
.09100
Package Weight
0.011
