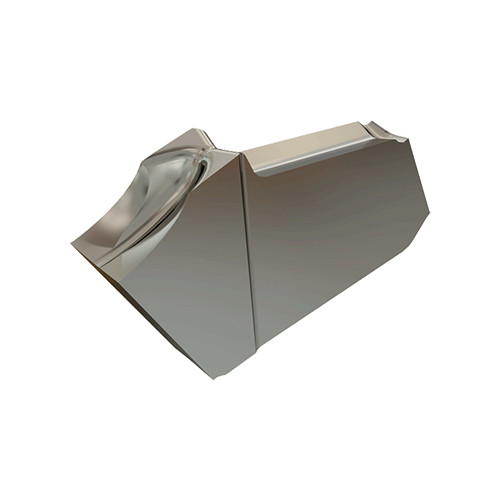

GFN 2J IC20
Parting Off Insert; 0.079″ CW × 0.0063″ Corner Radius ; Neutral ; Carbide ; Uncoated ; IC20

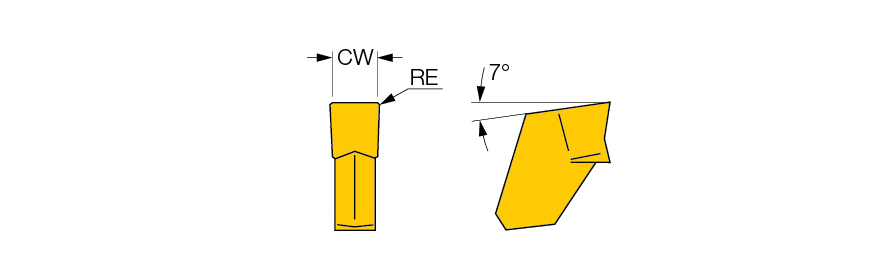

| Cutting Width (CW) | 0.079″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0063″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Int. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |
Product Features
| Family Description | First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with a positive rake, used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
