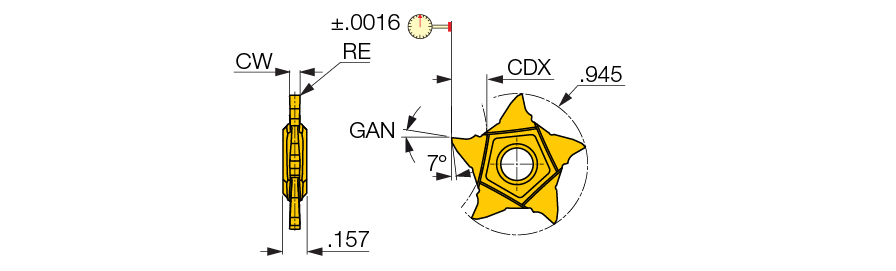

PENTA 24N250PF020 IC30N
Parting Off Insert; 0.098″ CW × 0.0079″ Corner Radius ; Neutral ; Cermet ; Uncoated ; IC30N
| Cutting Width (CW) | 0.098″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Insert Rake Angle (GAN) | 6 Degrees |
| Cutting Depth Maximum (CDX) | 0.256″ | Chip Breaker Type | PF |
| Cutting Edge Material | Cermet | Tool Type | Parting & Grooving Inserts |
| Coating | Uncoated | Angle | 12 Degrees |
| Grade | IC30N | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.157″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | |
Product Features

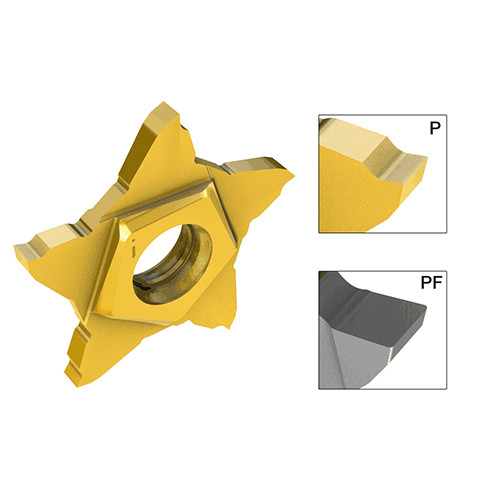

| Family Description | Parting and precision grooving inserts for soft and small parts. High positive rake, P-type has more positive rake, smaller radii and no edge honing vs. the PF-type. Most economical system with 5 cutting edges. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.014
