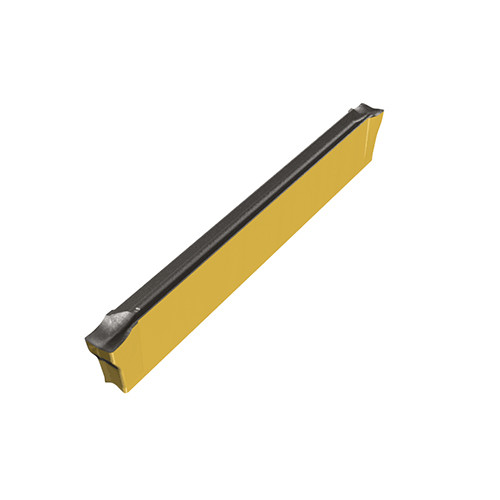

DGR 3002J-6D-XL IC830
Parting Off Insert; 0.118″ CW × 0.0079″ Corner Radius ; Right Hand ; Carbide ; AlTiN+TiN ; IC830

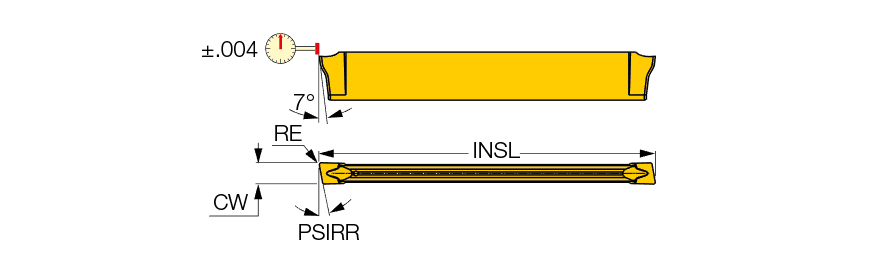

| Cutting Width (CW) | 0.118″ | Application | | Parting | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 1.378″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Insert Length (INSL) | 1.378″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 1.28″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
Product Features
| Family Description | First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
