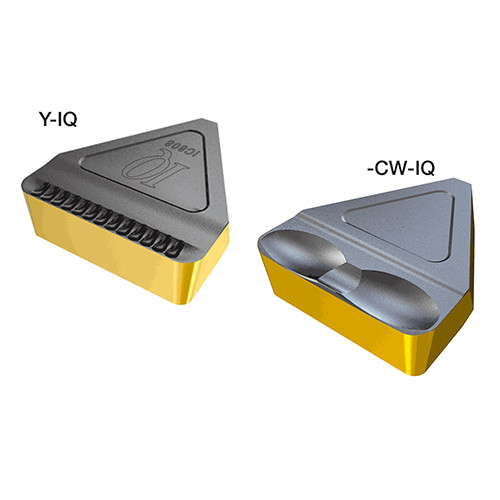

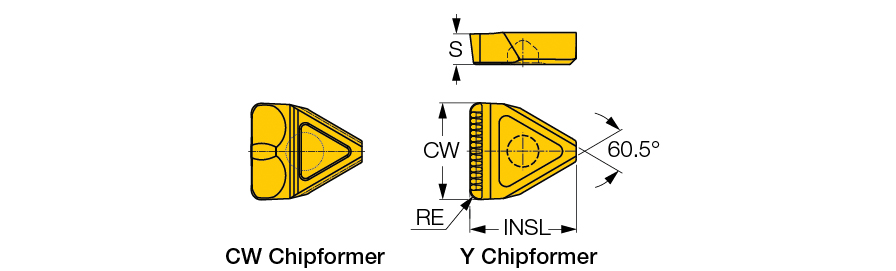

TIGER 1615Y-IQ IC808
Parting Off Insert; 0.63″ CW × 0.787″ Length × 1/4″ Thickness × 0.059″ Corner Radius ; Carbide ; TiAlN+AlTiN+TiN ; IC808

| Cutting Width (CW) | 0.63″ | Application | | Ext. Grooving | |
| Corner Radius (RE) | 0.059″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Max. Grooving Feed (fg(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 1/4″ | Min. Grooving Feed (fg(min)) | 0.0087 ″/rev |
| Overall Length (OAL) | 0.787″ | Tool Type | Groove-Turn Utility Inserts |
| Insert Length (INSL) | 0.787″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00314″ |
| Shape | Special |

Product Features
| Family Description | Utility single-ended inserts for external heavy grooving and deep machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.048
