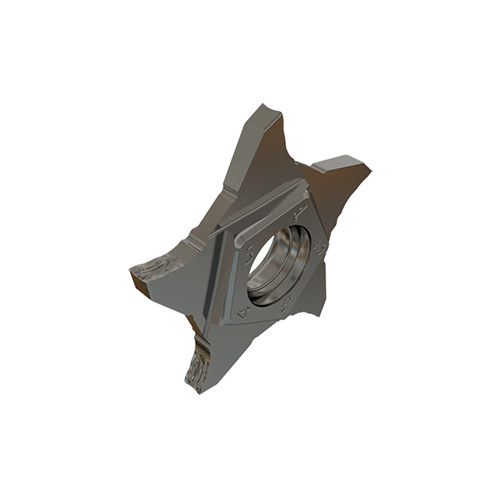

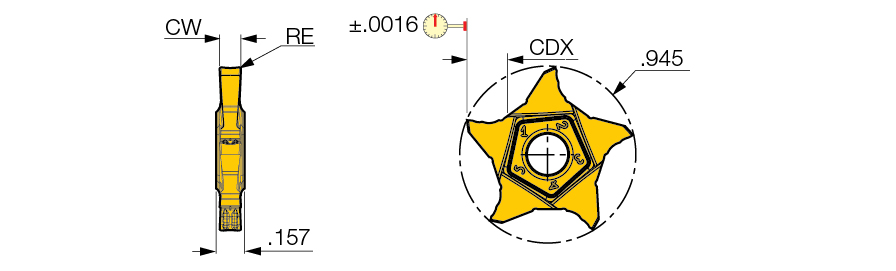

PENTA 24N150Z010 IC908
Parting Off Insert; 0.059″ CW × 0.0039″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.059″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0039″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.197″ | Chip Breaker Type | Z |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | Parting and precision grooving insert on soft parts and bearing steel, high positive rake. Most economical system with 5 cutting edges. | Country of Origin | Israel |
| Remarks | Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters Suitable for machining soft materials and bearing steel at low to medium feeds For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.021
