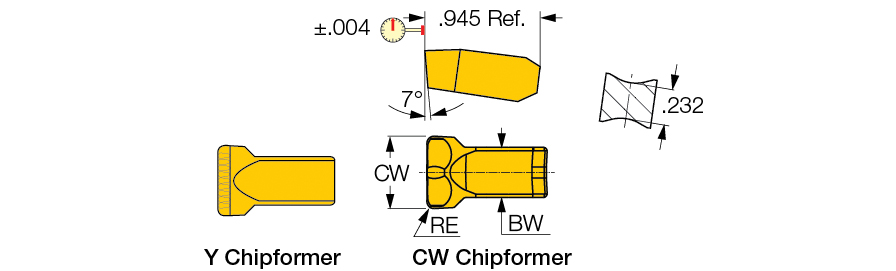

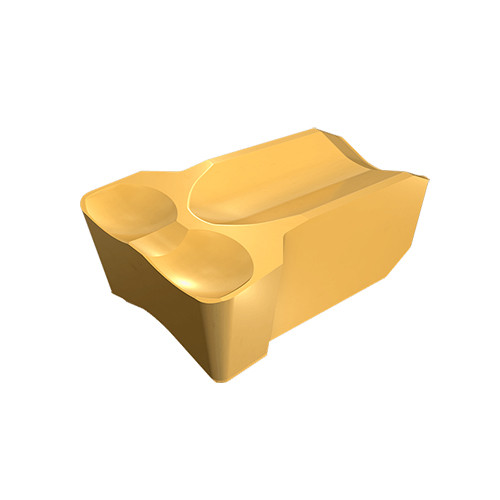

TIGER 1453-152-CW IC808
Parting Off Insert; 0.572″ CW × 0.945″ Length × 0.0598″ Corner Radius ; Carbide ; TiAlN+AlTiN+TiN ; IC808
| Cutting Width (CW) | 0.572″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0598″ | Max. Grooving Feed (fg(max)) | 0.0197 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0059 ″/rev |
| Overall Length (OAL) | 0.945″ | Tool Type | Groove-Turn Utility Inserts |
| Insert Length (INSL) | 0.945″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00314″ |
| Shape | 90° Rectangular | Insert Width (W1) | 0.394″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | |
Product Features
| Family Description | Utility single-ended inserts for external heavy grooving and deep machining. | Country of Origin | Israel |
Shipping Info
Package Length
5.50000
Package Width
2.25000
Package Height
.62500
Package Weight
0.065
