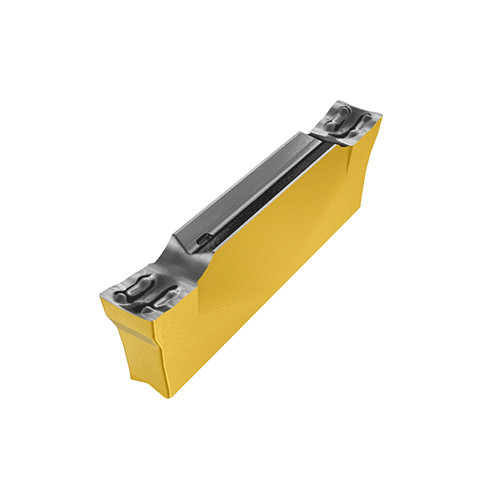

DGN 2002Z IC1030
Parting Off Insert; 0.079″ CW × 0.823″ Length × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN+TiN ; IC1030

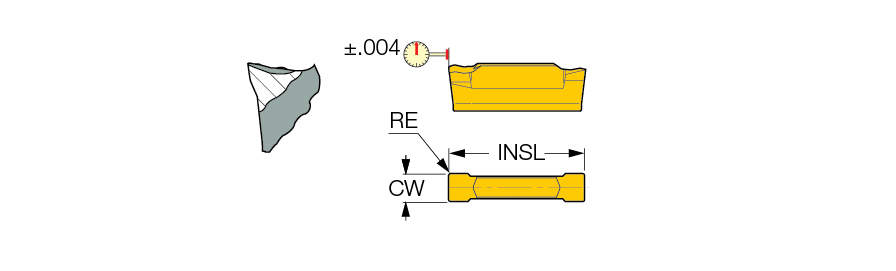

| Cutting Width (CW) | 0.079″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Overall Length (OAL) | 0.823″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Insert Length (INSL) | 0.823″ | Tool Type | Parting & Grooving Inserts |
| Cutting Depth Maximum (CDX) | 0.709″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1030 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |
| Cutting Direction (HAND) | Neutral |
Product Features

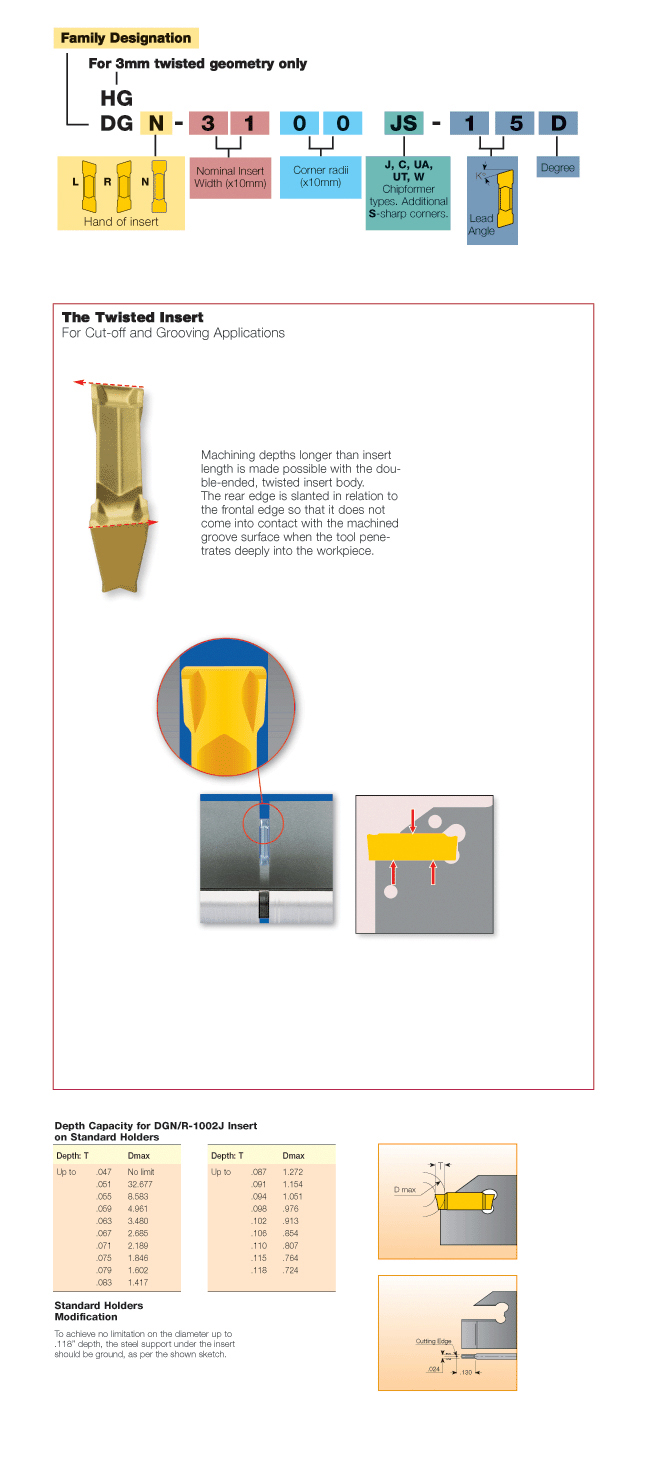

| Family Description | A chipformer for use at low feeds on Cr-Ni alloys and low carbon steel, especially in the bearing industry, and on similar, problematic materials. The narrow chipformer design ensures short deformed chips and high surface finish. | Country of Origin | Israel |
Shipping Info
Package Weight
0.005
