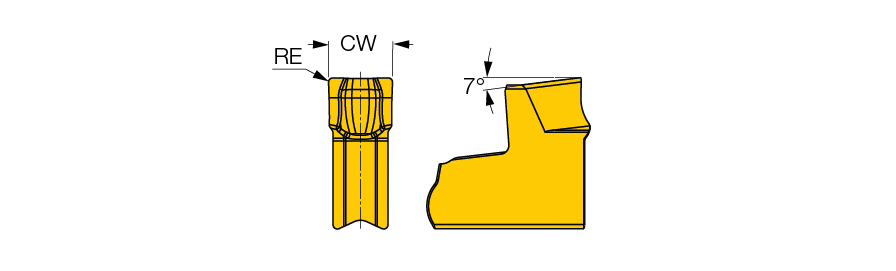

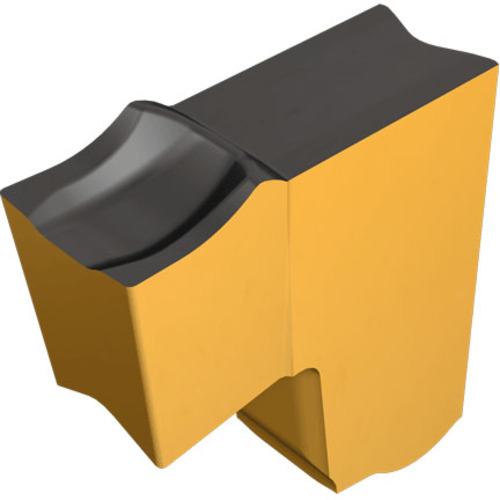

TAG N3LF IC1030
Parting Off Insert; 0.12″ CW × 0.008″ Corner Radius ; Neutral ; Carbide ; TiAlN+TiN ; IC1030
| Cutting Width (CW) | 0.12″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.008″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Chip Breaker Type | LF |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN | Angle | 12 Degrees |
| Grade | IC1030 | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Parting grooving and slitting single-ended inserts, for austenitic stainless steel and ductile materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.002
