DGS2-020 T9125

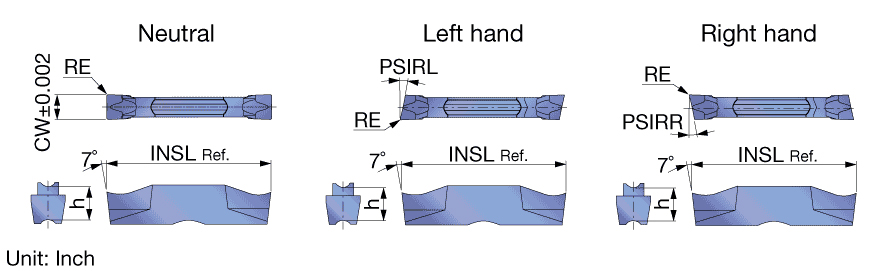

Parting Off Insert; 0.079″ CW × 0.787″ Length × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiCN+Al2O3+TiN ; T9125
| Cutting Width (CW) | 0.079″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | Steel | |
| Insert Length (INSL) | 0.787″ | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Face Turn-Groove Inserts |
| Coating | TiCN+Al2O3+TiN | Angle | 12 Degrees |
| Grade | T9125 | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
Product Features
| Family Description | Double-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.002 inch | Country of Origin | Japan |
| Remarks | For "Max workpiece diameter", click on "More Info". |
Shipping Info
Package Weight
0.007
Related Documentation

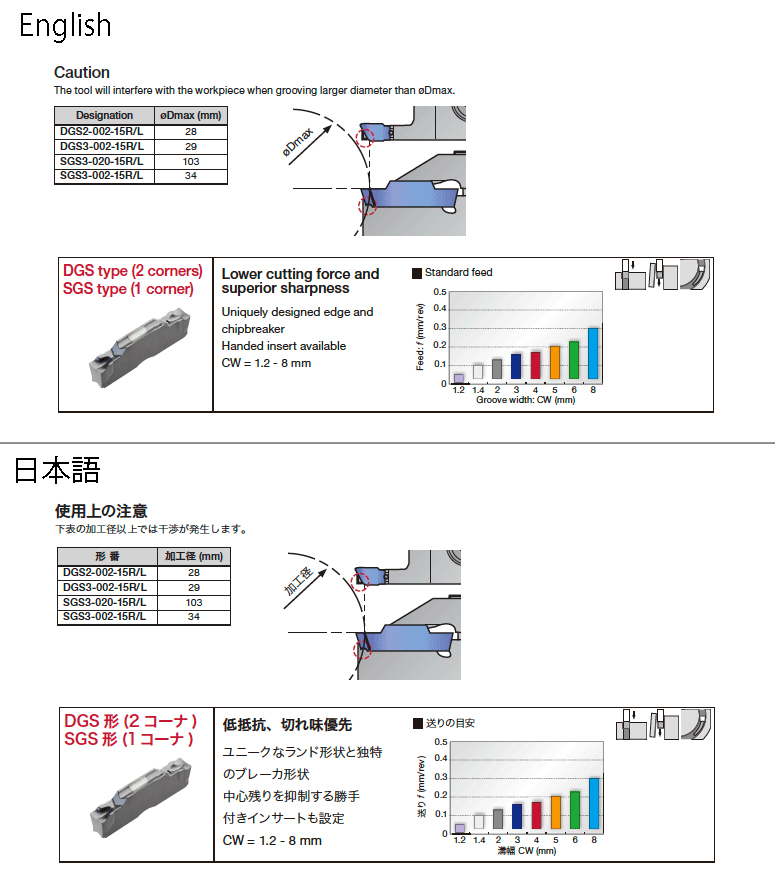

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
