15W7V-1005780R01

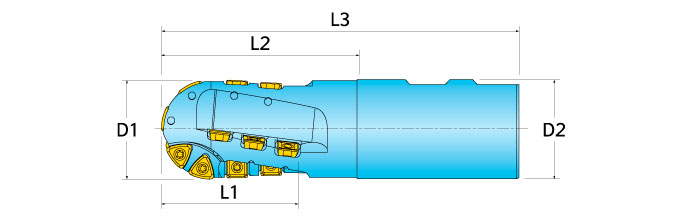

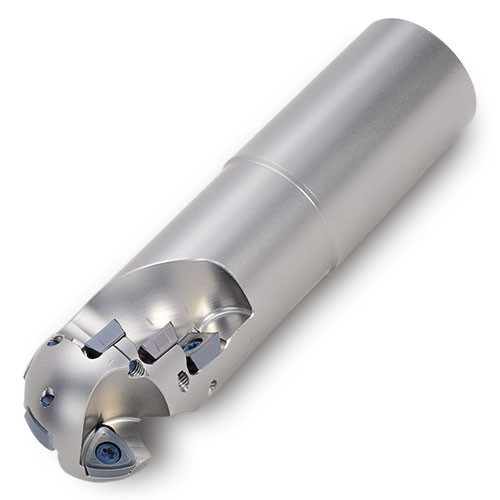

Indexable End Mill; 1″ Dia. × 1.1″ LOC × 1″ Shank Dia. × 8″ OAL
| Cutting Diameter (DC/DCX) | 1″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.1″ | Measurement Type | Inch |
| Overall Length (OAL) | 8″ | Body Material | Steel |
| Application | | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 5-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Cutting edge length: 1.10″ to 2.75″ | Country of Origin | USA |
Shipping Info
Package Weight
0.003
