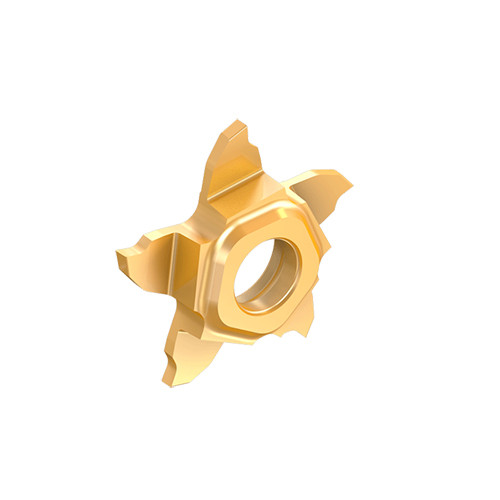

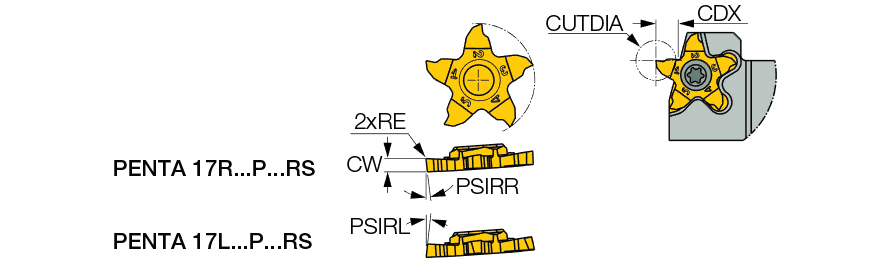

PENTA 17L100P-6D-RS IC1008
Parting Off Insert; 0.039″ CW × 0.002″ Corner Radius ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Width (CW) | 0.039″ | Max. Grooving Feed (fg(max)) | 0.0016 ″/rev |
| Corner Radius (RE) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Chip Breaker Type | P |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+TiN | Work Piece Parting Diameter Maximum (CUTDIA) | 0.236″ |
| Grade | IC1008 | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Lead angle edge pentagonal inserts (5 edges) for parting miniature parts, positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on softmaterials, thin parts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
