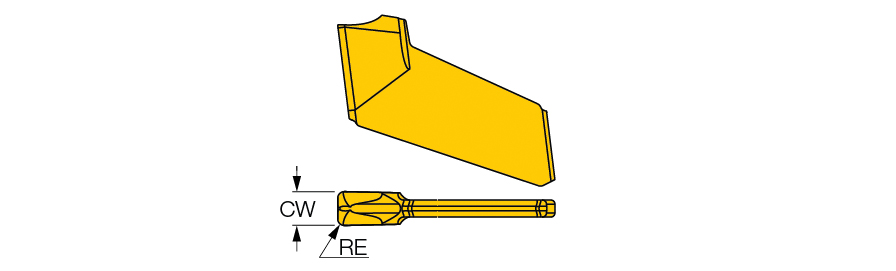

GFT 1.6C-0.16 IC1028
| Cutting Width (CW) | 0.063″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0063″ | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | HSK |
| Coating | TiAlN+TiN | Angle | 12 Degrees |
| Grade | IC1028 | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |
| Max. Grooving Feed (fg(max)) | 0.0059 ″/rev |
Product Features
| Family Description | Thin parting, grooving & slitting single-ended inserts for soft materials. Cutting edge with a positive rake, used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
