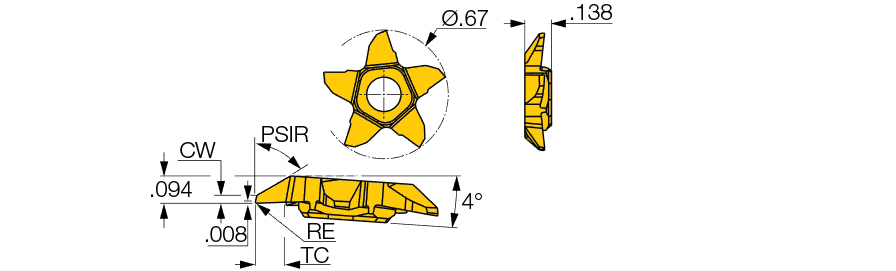

PENTA 17EL08-07K0LS IC1008
| Cutting Width (CW) | 0.028″ | Angle | 12 Degrees |
| Corner Radius (RE) | 0.0031″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.26″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Functional Width (WF) | 0.094″ |
| Grade | IC1008 | Body Material | Carbide |
| Application | | Ext. Back Turning | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.138″ |
Product Features
| Family Description | Back turning pentagonal inserts with a flat top rake for short chipping materials, used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.009
