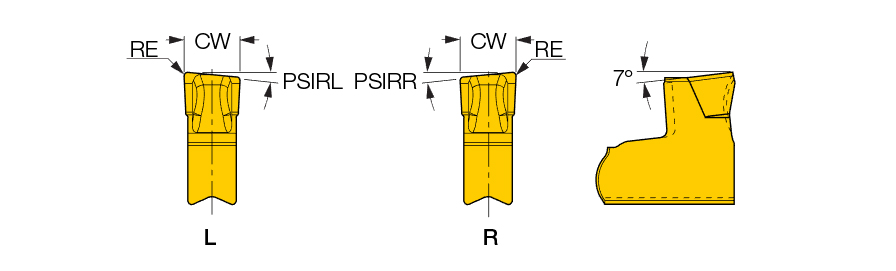

TAG L6.3C-4D IC830
Parting Off Insert; 6.35 mm CW × 0.35 mm Corner Radius ; Left Hand ; Carbide ; AlTiN+TiN ; IC830
| Cutting Width (CW) | 6.35 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.35 mm | Max. Grooving Feed (fg(max)) | 0.3 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Min. Grooving Feed (fg(min)) | 0.12 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC830 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |
| Remarks | The feed values for grade IC20 should be decreased by 50%. |
Shipping Info
Package Weight
0.033
