15N1H-0802286R01

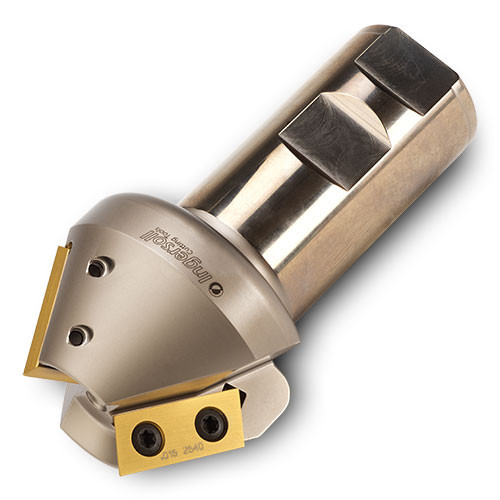

Indexable End Mill; 2.27″ Dia. × 0.69″ LOC × 1-1/2″ Shank Dia. × 4.91″ OAL ; 45 Degrees
| Cutting Diameter (DC/DCX) | 2.27″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 7/8″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.69″ | Angle | 90 Degrees |
| Overall Length (OAL) | 4.91″ | Measurement Type | Inch |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Protruding Length (LPR) | 2-1/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 2.63″ | Cutting Diameter Maximum (DCX) | 2.27″ |
Product Features
| Family Description | 25 mm Insert with 2 indexes | Country of Origin | USA |
Shipping Info
Package Weight
3.676
