15M1P-12047S9R01

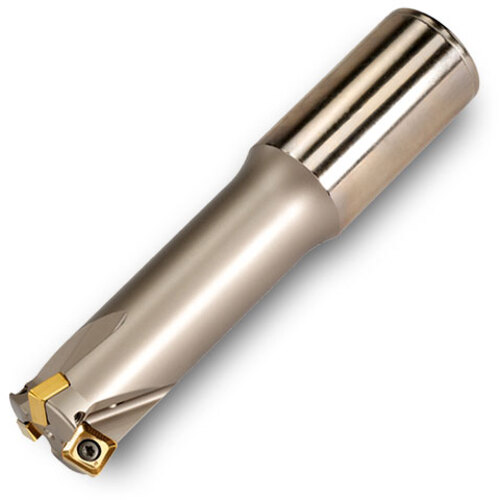

Indexable End Mill; 1-1/4″ Dia. × 0.078″ LOC × 1-1/4″ Shank Dia. × 8″ OAL × 4.18″ LU ; 12 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Corner Radius (RE) | 0.126″ |
| Cutting Diameter (DC) | 0.423″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Depth of Cut Maximum (APMX) | 0.078″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 8″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 9.1 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slanted Shoulder & Chamfer | | Protruding Length (LPR) | 4-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Usable Length (LU) | 4.18″ |
Product Features
| Family Description | .088″ Max. depth of cut | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
