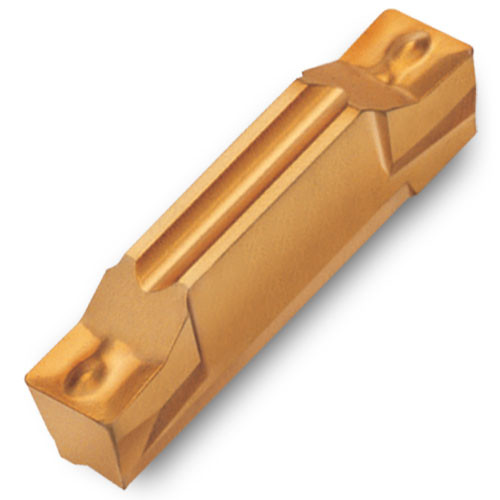

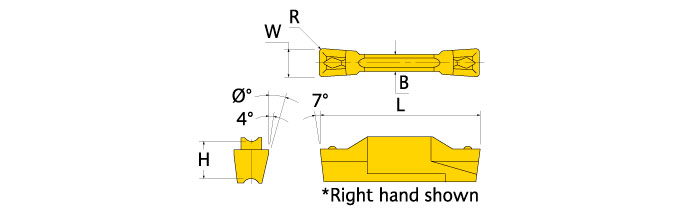

TDFT3E-0.4R K10
| Cutting Width (CW) | 0.118″ | Application | | Countersinking | Side Slotting | |
| Insert Length (INSL) | 0.79″ | Tool Type | Face Turn-Groove Inserts |
| Corner Radius (RE) | 0.016″ | Max. Face Grooving Feed (ffg(max)) | 0.15 mm/rev |
| Cutting Depth Maximum (CDX) | 0.748″ | Min. Face Grooving Feed (ffg(min)) | 0.1 mm/rev |
| Shape | 90° Rectangular | Coolant Supply Property (CSP) | External |
| Grade | K10 | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.010
