15B4J-12017X8R01

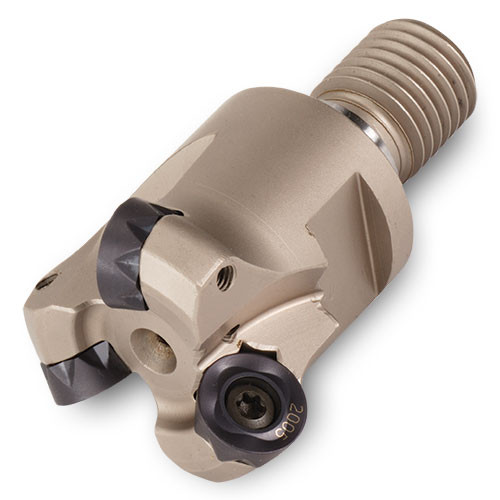

Indexable End Mill; 1-1/4″ Dia. × 1/4″ Max Depth
| Cutting Diameter (DC/DCX) | 1-1/4″ | Corner Radius (RE) | 1/4″ |
| Cutting Diameter (DC) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1/4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 4.5 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Hub Diameter (DHUB) | 1.13″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1-1/2″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | .25″ Max. depth of cut .50″ Button I.C. | Country of Origin | Usa |
