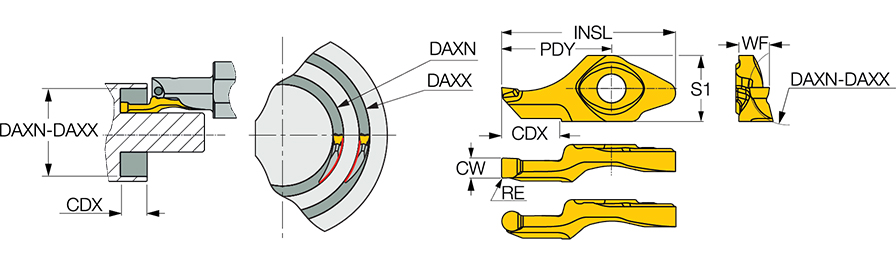

| Cutting Width (CW) | 0.118″ | Functional Width (WF) | 0.134″ |
| Insert Length (INSL) | 0.965″ | Axial Groove Outside Diameter Maximum (DAXX) | 3.94″ |
| Corner Radius (RE) | 0.059″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.394″ |
| Cutting Depth Maximum (CDX) | 0.354″ | Max. Face Grooving Feed (ffg(max)) | 0.0024 ″/rev |
| Insert Thickness Total (S1) | 0.299″ | Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Shape | 90° Rectangular | Min. Face Turning Feed (fft(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | IC908 | Coating | TiAlN |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | | Body Material | Carbide |

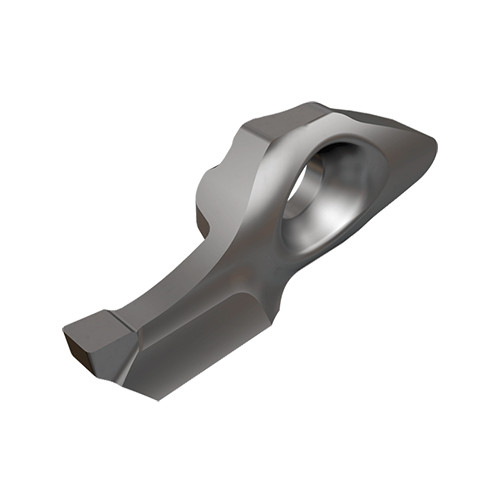

| Tool Type | Face Turn-Groove Inserts |
Product Features
| Family Description | Screw-clamped inserts for external face grooving and turning next to long shafts | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
