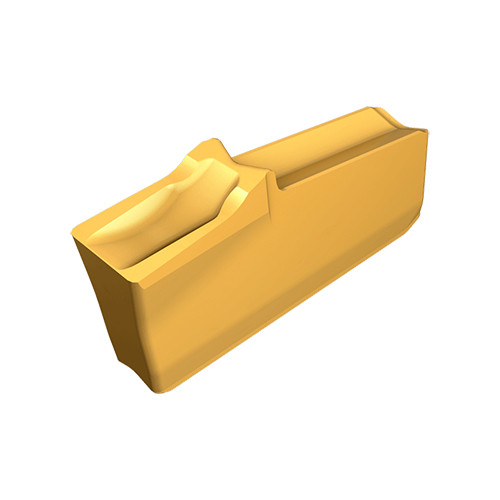

GFF 3R IC656

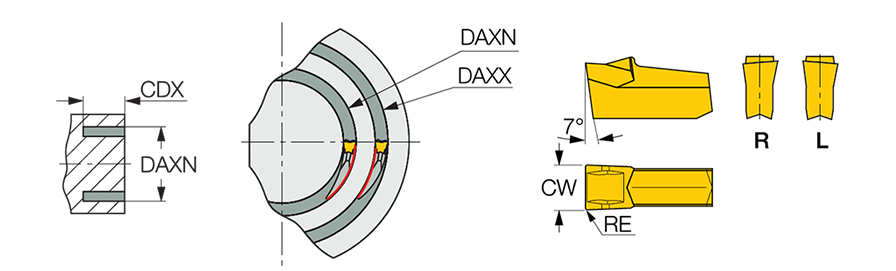

| Cutting Width (CW) | 0.118″ | Axial Groove Outside Diameter Maximum (DAXX) | 2.17″ |
| Corner Radius (RE) | 0.012″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.181″ |
| Shape | 90° Rectangular | Max. Face Grooving Feed (ffg(max)) | 0.0059 ″/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.0012 ″/rev |
| Applicable Material | | Steel | Stainless Steel | | Coolant Supply Property (CSP) | External |
| Grade | IC656 | Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving Along Shaft | | Coating | TiCN+TiC+TiN |
| Tool Type | Face Turn-Groove Inserts | Body Material | Carbide |
Product Features
| Family Description | SELF-GRIP face grooving inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.005
