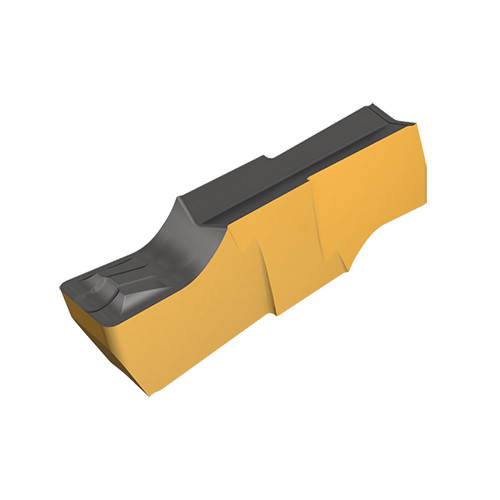

GINI 5.00E-0.50 IC808

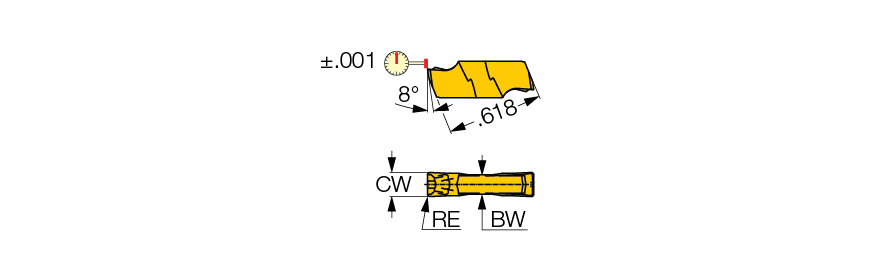

| Cutting Width (CW) | 0.197″ | Tool Type | Groove-Turn Precision Inserts |
| Insert Length (INSL) | 0.618″ | Depth of Cut Maximum (APMX) | 0.079″ |
| Corner Radius (RE) | 0.02″ | Min D.O.C. | 0.02″ |
| Cutting Depth Maximum (CDX) | 0.61″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Shape | 90° Rectangular | Min. Turning Feed (ft(min)) | 0.00472 ″/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | IC808 | Coating | TiAlN+AlTiN+TiN |
| Application | | Int. Groove & Turn | Int. Grooving | | Body Material | Carbide |
Product Features
| Family Description | Precision double-ended inserts for internal grooving and turning of ductile materials | Country of Origin | Israel |
| Remarks | DMIN for internal applications=.787 |
Shipping Info
Package Weight
0.014
