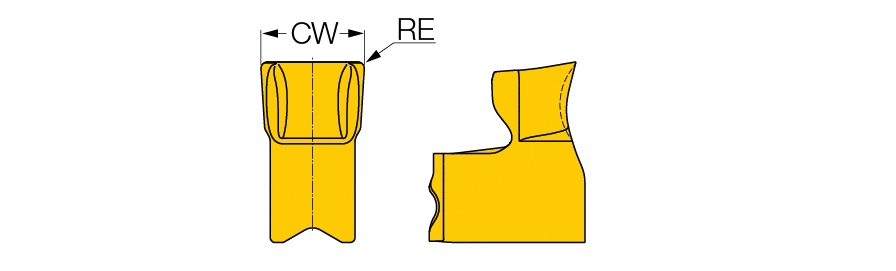

| Cutting Width (CW) | 0.197″ | Tool Type | Face Turn-Groove Inserts |
| Corner Radius (RE) | 0.0138″ | Max. Face Grooving Feed (ffg(max)) | 0.0079 ″/rev |
| Shape | 90° Rectangular | Min. Face Grooving Feed (ffg(min)) | 0.0047 ″/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | IC808 | Coating | TiAlN+AlTiN+TiN |
| Application | | Face Grooving | Face Grooving Along Shaft | | Body Material | Carbide |
Product Features

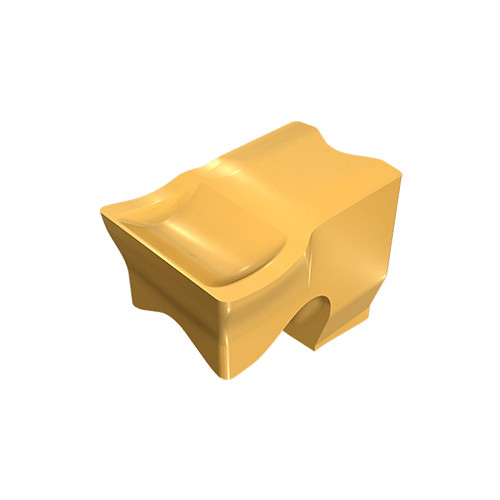

| Family Description | Face grooving single-ended inserts for machining stainless steel and high temperature alloys. The inserts are clamped in tangentially oriented pocket tools. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
