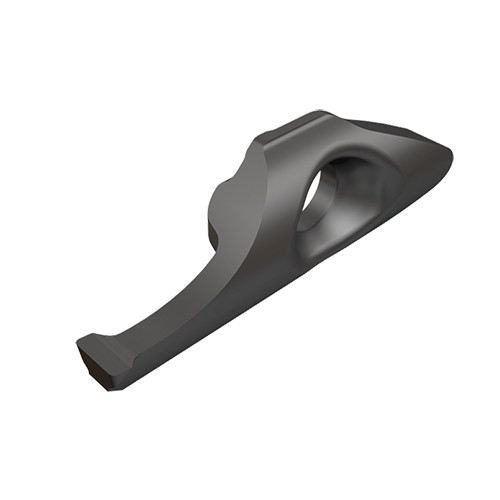

MIFR 10-3.00-1.50 IC908

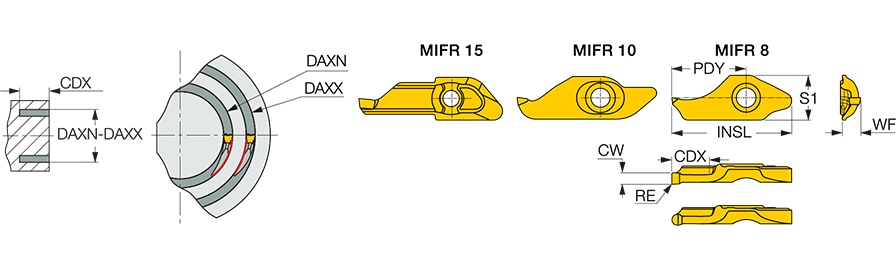

| Cutting Width (CW) | 0.118″ | Depth of Cut Maximum (APMX) | 0.028″ |
| Insert Length (INSL) | 0.988″ | Min D.O.C. | 0.008″ |
| Corner Radius (RE) | 0.059″ | Axial Groove Outside Diameter Maximum (DAXX) | 1.34″ |
| Cutting Depth Maximum (CDX) | 0.354″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.394″ |
| Insert Thickness Total (S1) | 0.299″ | Max. Face Grooving Feed (ffg(max)) | 0.0039 ″/rev |
| Shape | Special | Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide | Min. Face Turning Feed (fft(min)) | 0.0008 ″/rev |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Master Insert Identification (MIID) | MIFR 10 |
| Grade | IC908 | Coolant Supply Property (CSP) | External |
| Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | | Measurement Type | Inch |
| Tool Type | Face Turn-Groove Inserts | Coating | TiAlN |
| Functional Width (WF) | 0.13″ | Body Material | Carbide |
Product Features
| Family Description | MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow. Penetration diameter range .315-.669″ to .224″ depth | Country of Origin | Israel |

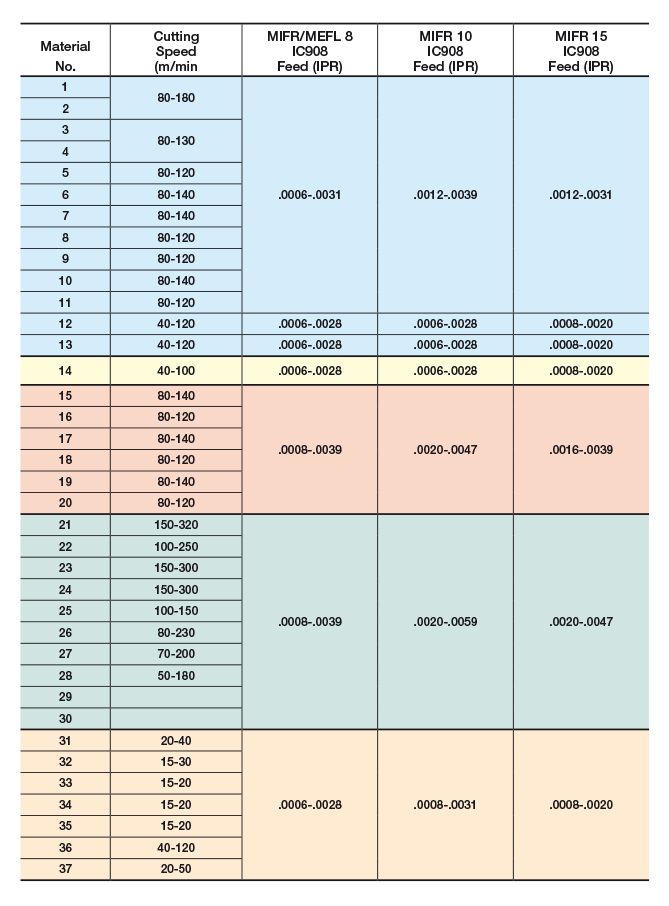

| Remarks | Recommended cutting speeds and feeds can be increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel |
Shipping Info
Package Weight
0.007
