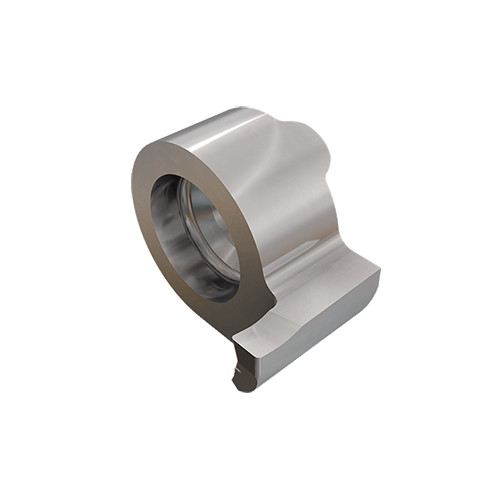

GFQR 12-2.50-0.20 IC528

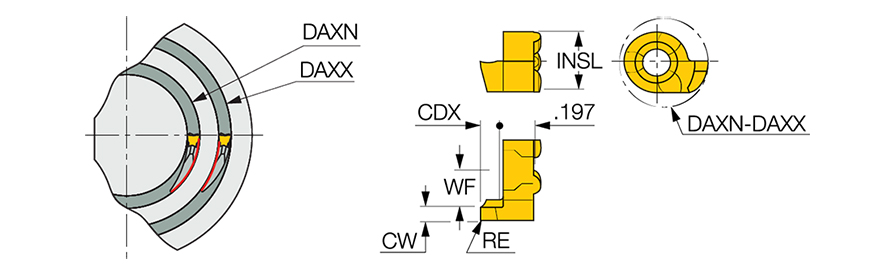

| Cutting Width (CW) | 0.098″ | Functional Width (WF) | 0.217″ |
| Insert Length (INSL) | 0.354″ | Axial Groove Outside Diameter Maximum (DAXX) | 3/4″ |
| Corner Radius (RE) | 0.0079″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.512″ |
| Cutting Depth Maximum (CDX) | 0.118″ | Max. Face Grooving Feed (ffg(max)) | 0.002 ″/rev |
| Shape | Special | Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | IC528 | Coating | TiCN+TiN |
| Application | | Face Grooving | Int. Face Grooving | | Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts |
Product Features
| Family Description | Screw clamped, face grooving inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
