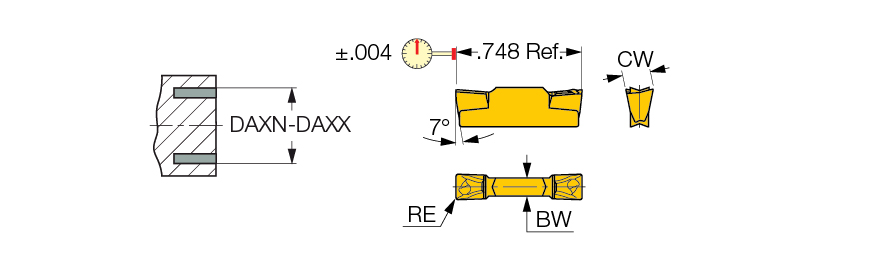

HFPR 3003 IC806
| Cutting Width (CW) | 0.118″ | Min D.O.C. | 0.012″ |
| Insert Length (INSL) | 0.748″ | Axial Groove Outside Diameter Maximum (DAXX) | 2.03″ |
| Corner Radius (RE) | 0.012″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.01″ |
| Shape | 90° Rectangular | Max. Face Grooving Feed (ffg(max)) | 0.0079 ″/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.0031 ″/rev |
| Applicable Material | | Super-Alloys / Titanium | | Min. Face Turning Feed (fft(min)) | 0.0039 ″/rev |
| Grade | IC806 | Coolant Supply Property (CSP) | External |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | | Measurement Type | Inch |
| Tool Type | Face Turn-Groove Inserts | Coating | AlTiN "SUMO TEC" |
| Depth of Cut Maximum (APMX) | 0.059″ | Body Material | Carbide |
Product Features
| Family Description | Utility double-ended face machining inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
