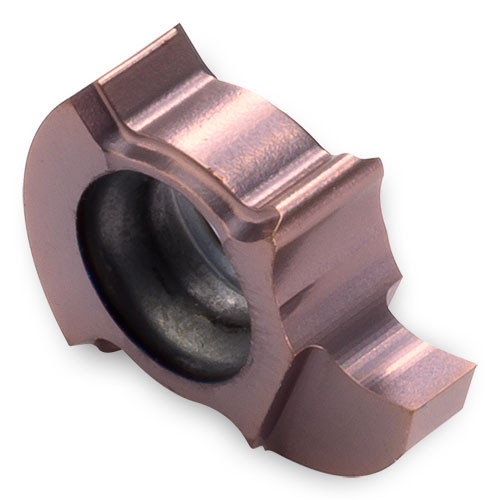

TMIS8-1.00-0.00 TT8020
Grooving Insert; 0.039″ CW × 0.0012″ Max Depth × 0.098″ Thickness
| Cutting Width (CW) | 0.039″ | Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 0.0012″ | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Insert Thickness (S) | 0.098″ | Min. Grooving Feed (fg(min)) | 0.0004″ |
| Insert Length (INSL) | 0.307″ | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Application | | Int. Groove & Turn | Int. Grooving | | Height | 0.344″ |
| Cutting Direction (HAND) | Neutral |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.004
