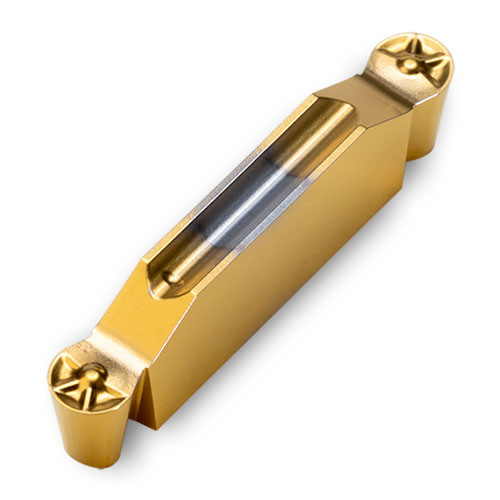

TDT3.00E-1.50-RS TT3010
Grooving Insert; 0.118″ CW × 0.006″ Max Depth × 0.087″ Thickness
| Cutting Width (CW) | 0.118″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.059″ | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 0.006″ | Insert Seat Size Code (SSC) | 3 |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Insert Thickness (S) | 0.087″ | Min. Grooving Feed (fg(min)) | 0.003″ |
| Insert Length (INSL) | 0.787″ | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Application | | Countersinking | Ext. Grooving | Ext. Profiling | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Ext.) Groove Turn T | | Height | 0.344″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.010
