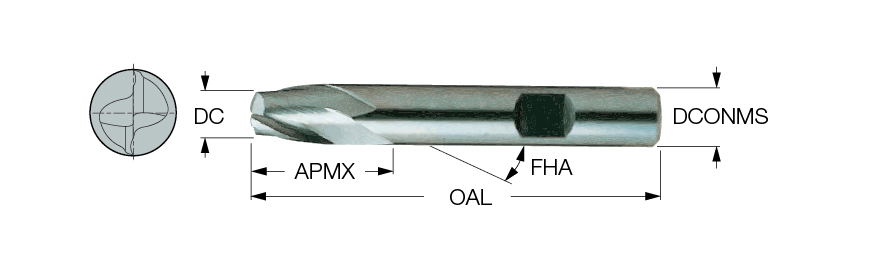

EC-A2 09-10W10E66 IC08
| Cutting Diameter (DC) | 9 mm | Applicable Material | Non-Ferrous Metals| |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm | Grade | IC08 |
| Overall Length (OAL) | 66 mm | Tool Type | Solid Carbide Center Cutting Endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Coating | Uncoated | Length Group | Short|Stub |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Weldon |
Product Features
| Family Description | SOLIDECO - economical type 2 flute, 30° helix center cutting short solid carbide endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.148
