12J1D-10007R8R01

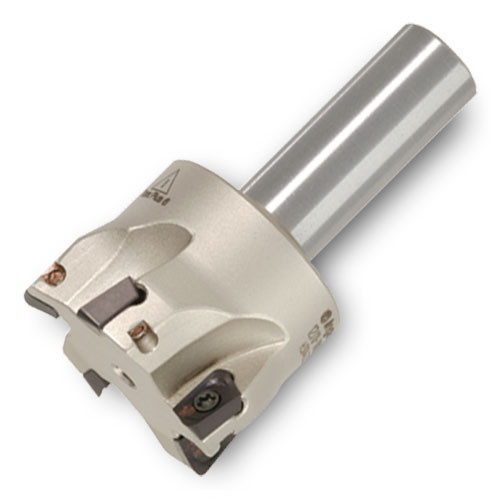

Indexable End Mill; 1″ Dia. × 0.22″ LOC × 3/8″ Shank Dia. × 1-3/4″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 3/4″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.22″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the integrated wiper (WEP) Insert corners: SC, .008″, .015″, .031″, .062″ R & Hi-Feed | Country of Origin | Germany |
Shipping Info
Package Weight
0.138
