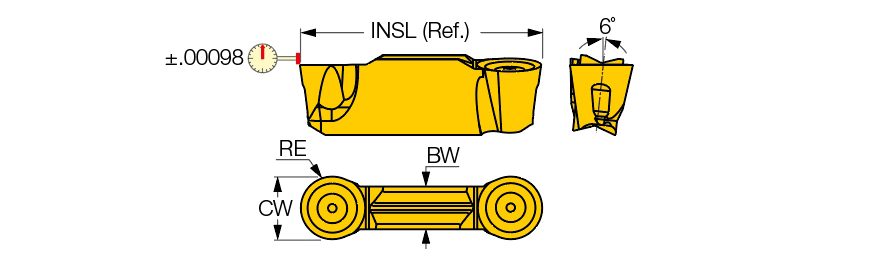

| Cutting Width (CW) | 0.197″ | Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.0984″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.754″ | Tool Type | Groove-Turn Utility Inserts |
| Coating | Uncoated | Threads per Inch (TPI) | 8 |
| Grade | IC07 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features

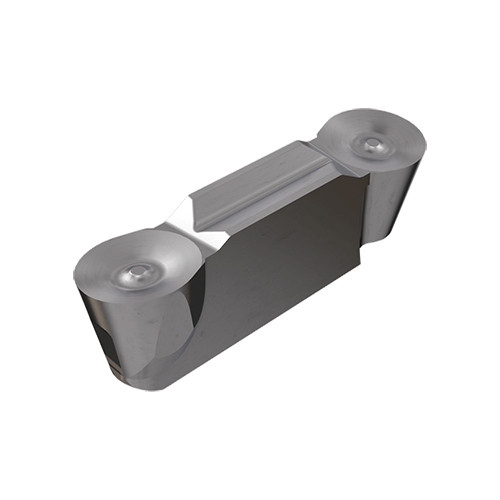

| Family Description | Full radius double-ended inserts, for turning and grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
