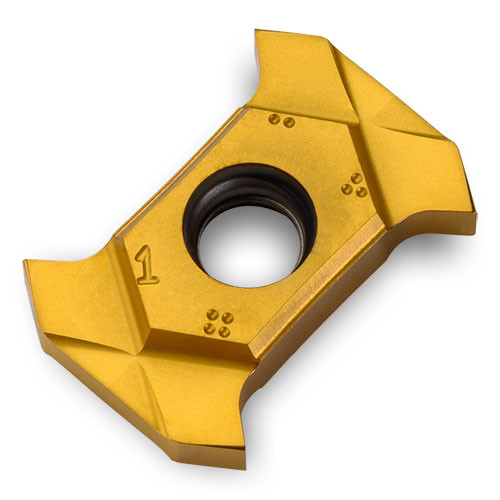

TQIS14-2.50-0.20 TT9080
Grooving Insert; 0.098″ CW × 0.0035″ Max Depth × 0.146″ Thickness
| Cutting Width (CW) | 0.098″ | Number of Cutting Edges | 4 |
| Corner Radius (RE) | 0.008″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.0035″ | Threads per Inch (TPI) | 8 |
| Thread Pitch Maximum (TPX) | 0.344″ | Min. Grooving Feed (fg(min)) | 0.001″ |
| Insert Thickness (S) | 0.146″ | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Application | | Int. Groove & Turn | Int. Grooving | | Height | 0.344″ |
| Cutting Direction (HAND) | Neutral |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.011
