ECAI-H4R 500-1.0/1.5C01CF IC08

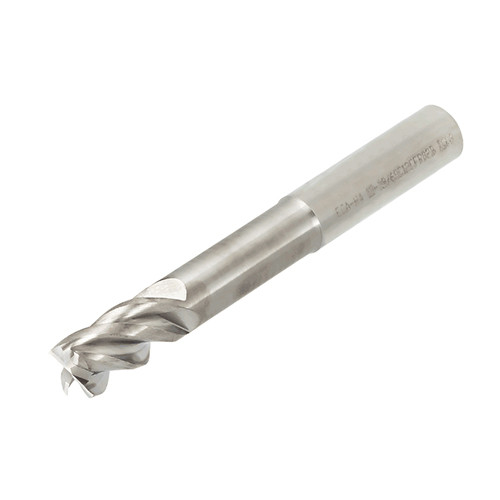

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.01″ RE ; 4 FL ; 1-1/2″ LBS ; Carbide ; Uncoated

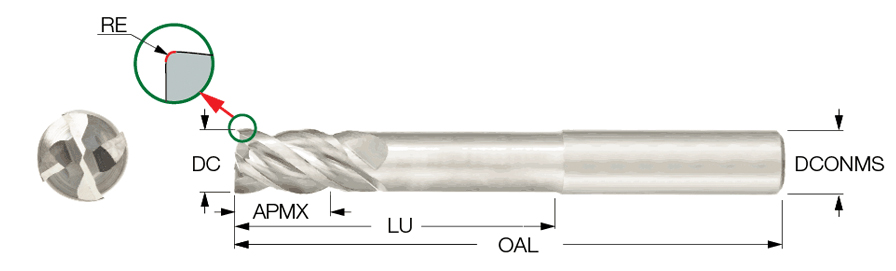

| Cutting Diameter (DC) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 1″ | Neck Diameter (DN) | 0.486″ |
| Overall Length (OAL) | 3″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.0051 ″/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 1-1/2″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.01″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing. | Country of Origin | Israel |
Shipping Info
Package Weight
0.305
