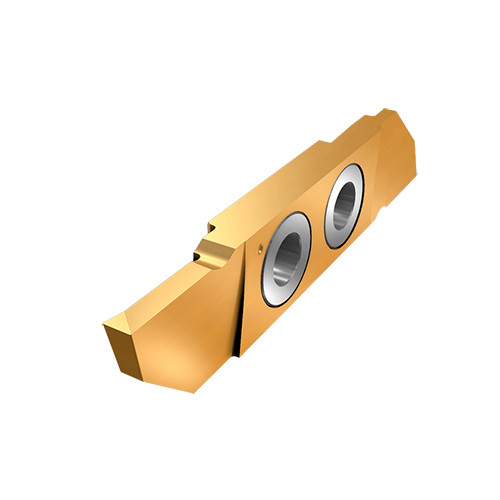

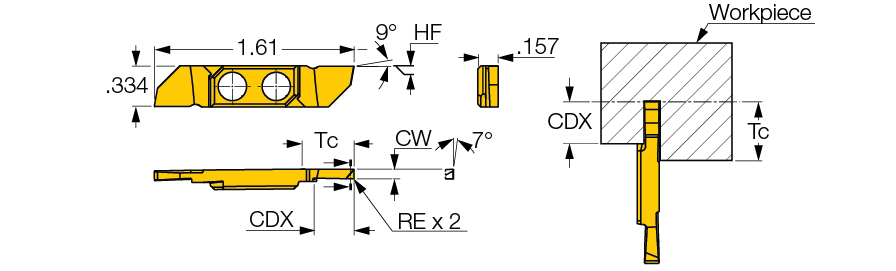

SCIL 41-150NP08 IC1008
Grooving Insert; 0.059″ CW × 0.315″ Max Depth ; Carbide ; IC1008 ; TiAlN+TiN
| Cutting Width (CW) | 0.059″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0031″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.315″ | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC1008 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
Product Features
| Family Description | Groove-turn and parting inserts used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
| Remarks | When turning to the opposite side of chipformer, maximum D.O.C. is .020 |
Shipping Info
Package Weight
0.033
