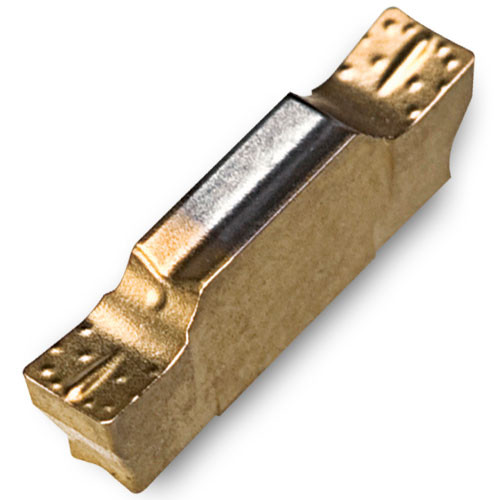

TDIP2.00E-0.10 TT9080
Grooving Insert; 0.079″ CW × 0.002″ Max Depth × 0.063″ Thickness ; Carbide ; TT9080 ; TiAlN+TiN
| Cutting Width (CW) | 0.079″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.004″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.002″ | Number of Cutting Edges | 2 |
| Clearance Angle Major (AN) | 7 Degrees | Insert Seat Size Code (SSC) | 2 |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.063″ | Threads per Inch (TPI) | 8 |
| Insert Length (INSL) | 0.394″ | Min. Grooving Feed (fg(min)) | 0.0012″ |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.004
