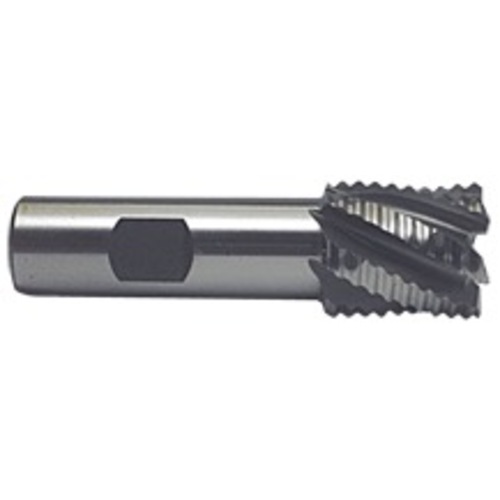

1X1-1/8 TiCN M42 RGH 6F
SQ End Mill; 1″ Dia. × 1-1/8″ LOC × 3-3/8″ OAL ; 6 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 1″ | Usable Length (LU) | 1-1/8″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Application | Roughing |
| Overall Length (OAL) | 3-3/8″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 6 |
Product Features
| Remarks | •3/4 Shank - M–42 Cobalt - Coarse Tooth •Roughing End Mills For Bridgeports •For general purpose milling of soft to medium hard materials •Suitable for heavier feed rates •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Length
5.10000
Package Width
1.10000
Package Height
1.10000
Package Weight
0.5
