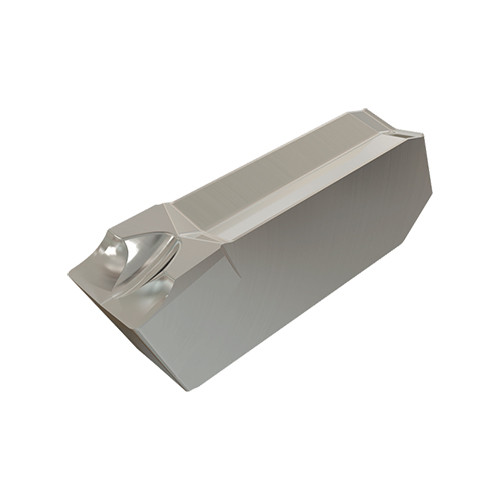

GIM 3J IC328
Grooving Insert; 0.118″ CW ; Carbide ; IC328 ; TiCN

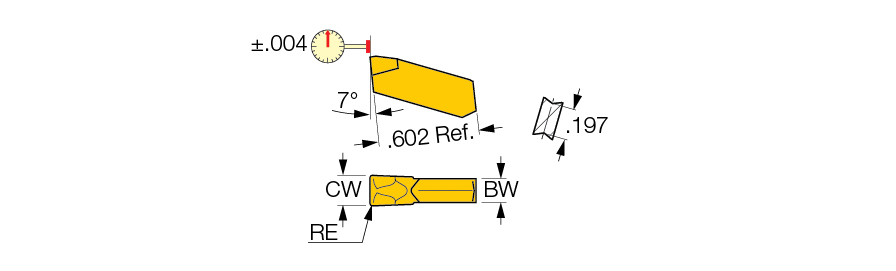

| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0098″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | J |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Feed | 0.0059 inch/rev | Measurement Type | Inch |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC328 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Height | 0.344″ |
Product Features
| Family Description | First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. | Country of Origin | Israel |
