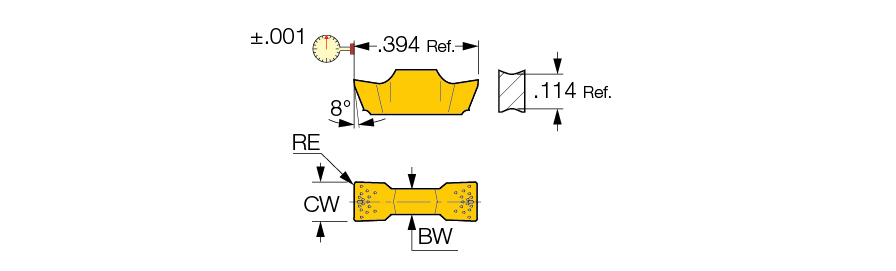

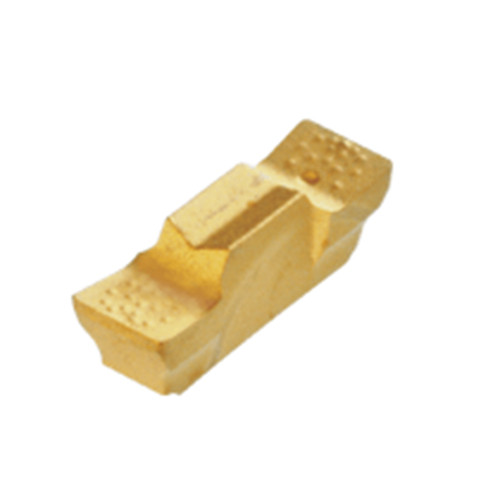

GEPI 2.47-0.20 IC08
Grooving Insert; 0.097″ CW × 0.354″ Max Depth ; Carbide ; IC08 ; Uncoated
| Cutting Width (CW) | 0.097″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.008″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.354″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.394″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.453″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0043 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Precision double ended inserts, for internal and external grooving at low feeds in diameters from .453″. | Country of Origin | Israel |
| Remarks | DMIN for internal application=.453 |
Shipping Info
Package Weight
0.005
