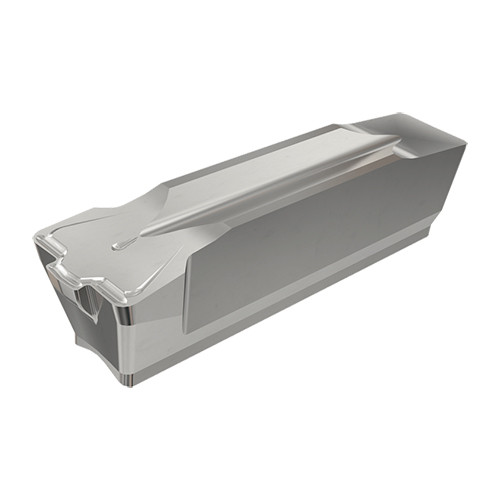

GDMM 8CC IC907
Grooving Insert; 0.315″ CW ; Carbide ; IC907 ; TiAlN

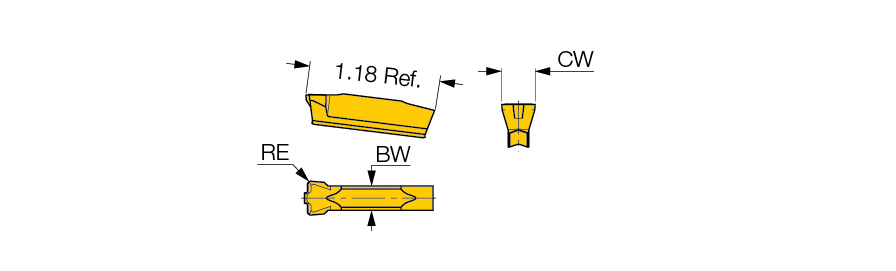

| Cutting Width (CW) | 0.315″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0315″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Chip Breaker Type | CC |
| Insert Length (INSL) | 1.179″ | Cutting Position | External |
| Feed | 0.0177 inch/rev | Measurement Type | Inch |
| Coating | TiAlN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC907 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Grooving | | Height | 0.344″ |
Product Features
| Family Description | Single-ended, utility insert for external rough grooving and side turning with a front chip splitter. Used mainly on ductile materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.045
