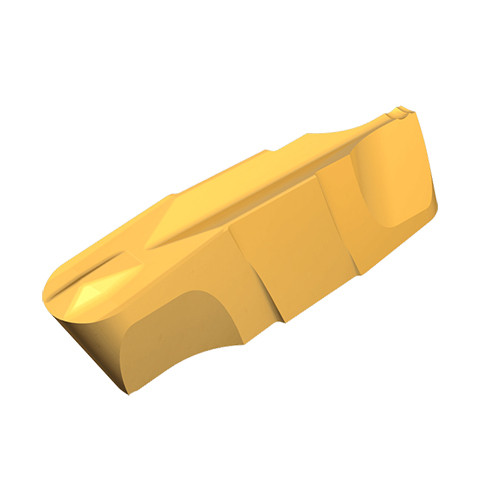

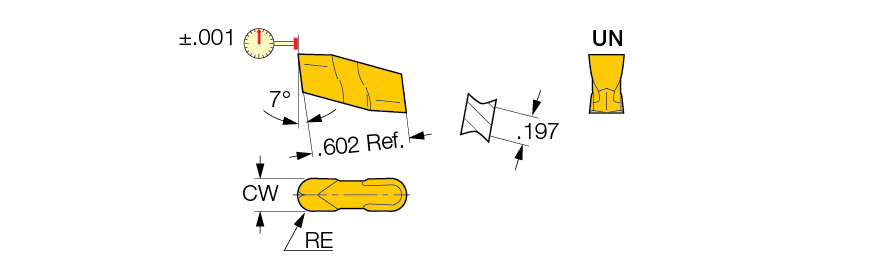

GIP 3.00-1.50UN IC8250
Grooving Insert; 0.118″ CW × 0.157″ Max Depth ; Carbide ; IC8250 ; TiCN+Al2O3+TiN
| Cutting Width (CW) | 0.118″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.059″ | Application | | Ext. Undercut | Face Grooving | |
| Cutting Depth Maximum (CDX) | 0.157″ | Applicable Material | | Steel | Stainless Steel | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.602″ | Tool Type | Groove-Turn Precision Inserts |
| Minimum Bore Diameter (DMIN) | 1.378″ | Threads per Inch (TPI) | 8 |
| Feed | 0.0059 inch/rev | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Cutting Edge Length (L) | 0.401″ |
| Grade | IC8250 | Height | 0.344″ |
| Shape | 90° Rectangular |
Product Features
| Family Description | Precision inserts for external undercutting and recessing. Double-ended, P-type chipformer, large clearance angle for small diameters, not recommended for turning. | Country of Origin | Israel |
| Remarks | Not recommended for turning For undercutting at 45° and D 3.94, other GIP inserts apply as well |
Shipping Info
Package Weight
0.008
