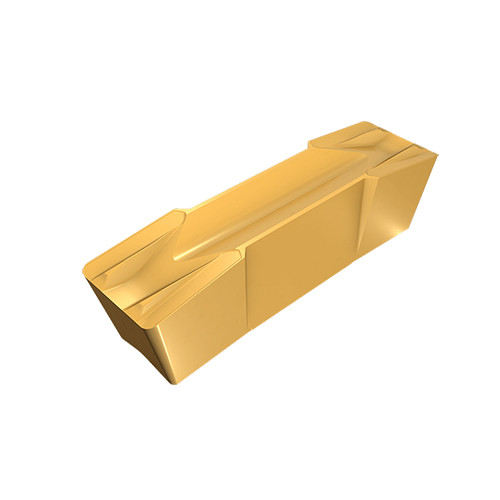

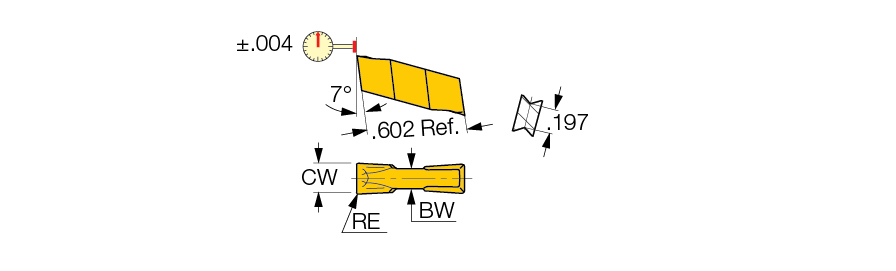

GDMF 808 IC830
Grooving Insert; 0.315″ CW × 1.063″ Max Depth ; Carbide ; IC830 ; AlTiN+TiN
| Cutting Width (CW) | 0.315″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 1.063″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.559″ | Tool Type | Groove-Turn Utility Inserts |
| Feed | 0.022 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Utility, double-ended inserts. Used for general, external, internal and face, heavy-duty turning and grooving, at medium-to-high feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.56 |
Shipping Info
Package Weight
0.049
