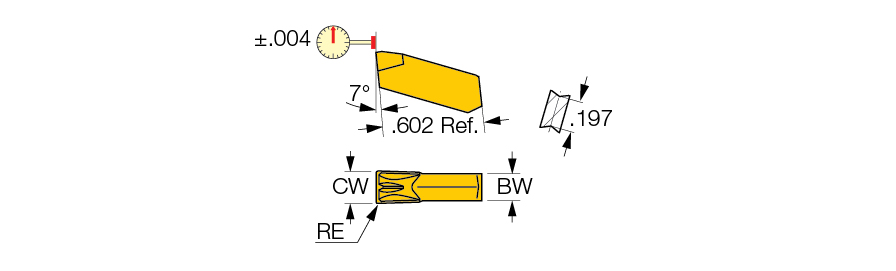

GIM 3.2 IC354

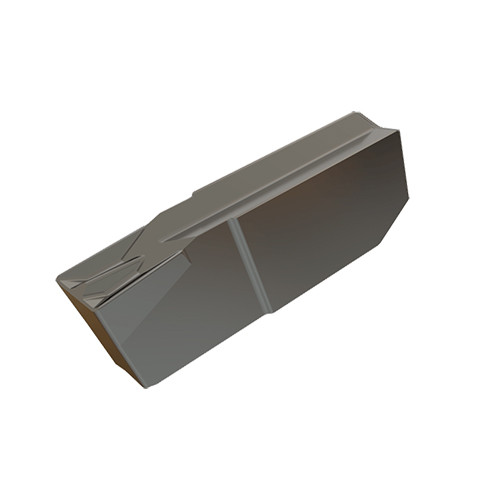

Grooving Insert; 0.126″ CW ; Carbide ; IC354 ; TiCN
| Cutting Width (CW) | 0.126″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0087″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | W |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Feed | 0.0079 inch/rev | Measurement Type | Inch |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC354 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Height | 0.344″ |
Product Features
| Family Description | Parting & grooving single-sided insert. W-type chipformer, with a center ridge that forms double cavities on the rake face. Most efficient on alloy steel. | Country of Origin | Israel |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.009
Related Documentation

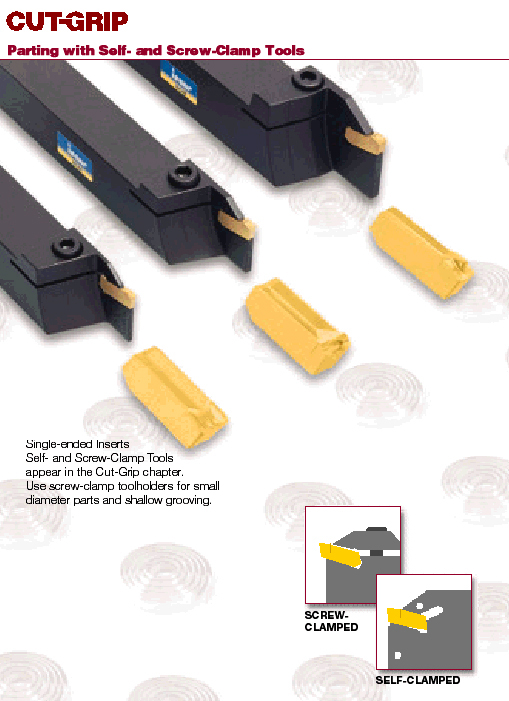

Utility, single-ended, for cut-off and deep grooving. Unique double concave chipformer for alloy steel and stainless steel at low-to-medium feeds. Chipformer is similar to the SELF-GRIP W-type.
