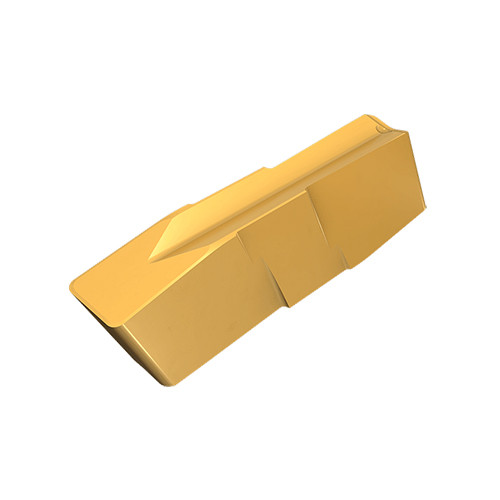

GIA 4.00K-0.40 IC5010
Grooving Insert; 0.157″ CW × 0.512″ Max Depth ; Carbide ; IC5010 ; TiCN+Al2O3+TiN

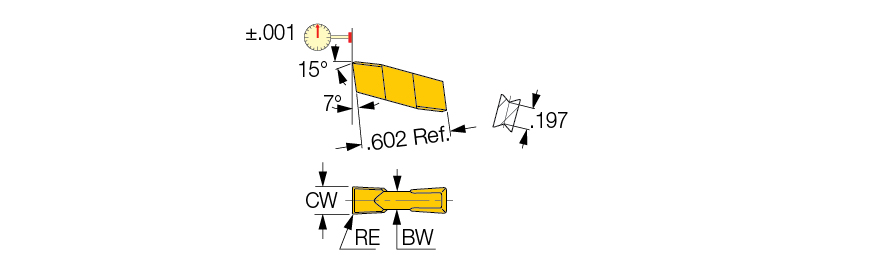

| Cutting Width (CW) | 0.157″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.016″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.512″ | Applicable Material | | Cast Iron | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 15 Degrees | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0106 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC5010 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Precision inserts for machining cast iron. Double-ended, flat top, medium-to-high feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.013
