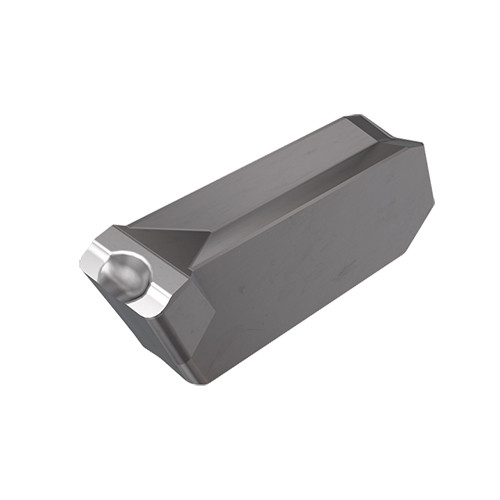

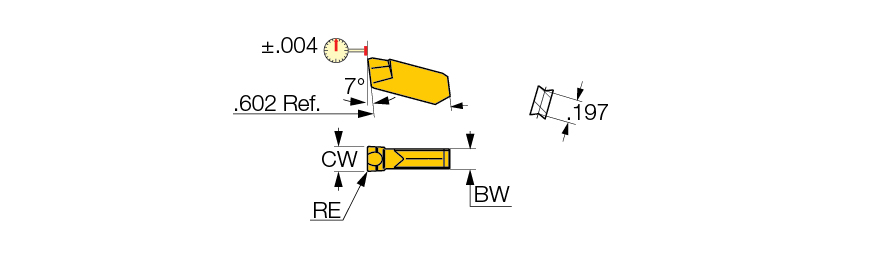

GIM 4.6UT IC656
Grooving Insert; 0.181″ CW ; Carbide ; IC656 ; TiCN+TiC+TiN
| Cutting Width (CW) | 0.181″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0236″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | U |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Feed | 0.0039 inch/rev | Measurement Type | Inch |
| Coating | TiCN+TiC+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC656 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | Slitting | | Height | 0.344″ |
Product Features
| Family Description | Utility, single-ended, parting and grooving, screw clamped inserts. Used at low feeds on CrNi alloys and low carbon steel, especially in the bearing industry, and on similar, problematic materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
