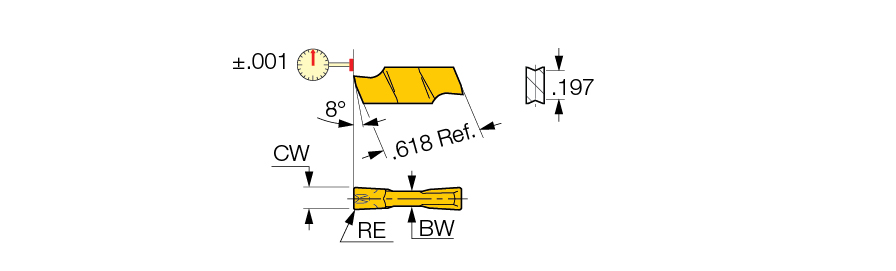

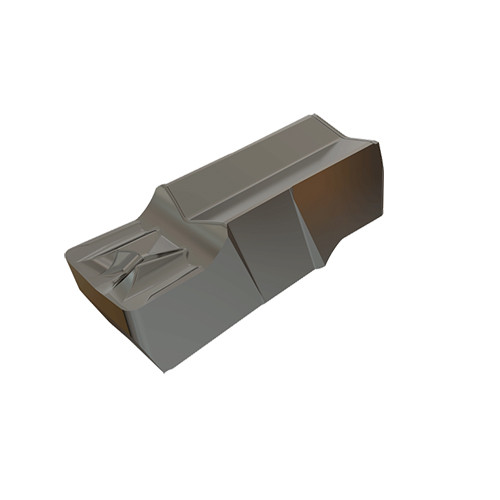

GIFI 4.00E-0.40 IC808
Grooving Insert; 0.157″ CW × 0.61″ Max Depth ; Carbide ; IC808 ; TiAlN+AlTiN+TiN
| Cutting Width (CW) | 0.157″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.016″ | Application | | Int. Groove & Turn | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 0.61″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.618″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0075 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Precision double-ended inserts for internal turning and grooving at low-to-medium feeds. Min. bore diameter .787″. | Country of Origin | Israel |
| Remarks | DMIN for internal applications = .787 |
Shipping Info
Package Weight
0.011
