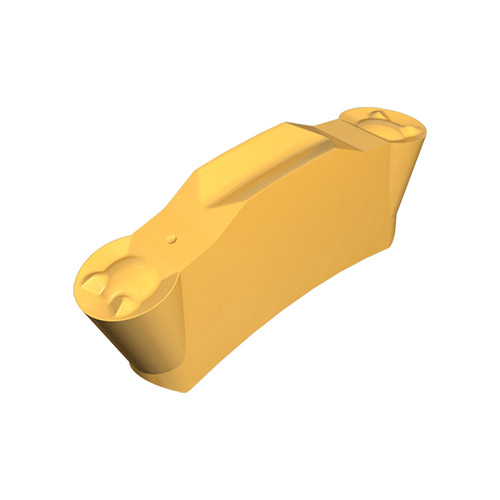

TGMF 525 IC808
Grooving Insert; 0.197″ CW × 0.563″ Max Depth ; Carbide ; IC808 ; TiAlN+AlTiN+TiN

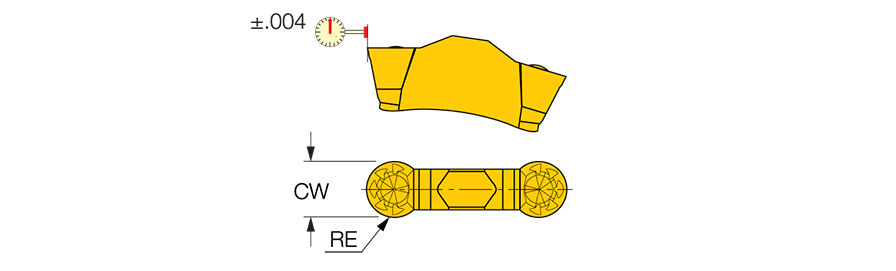

| Cutting Width (CW) | 0.197″ | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.098″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.563″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.699″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.807″ | Tool Type | Groove-Turn Utility Inserts |
| Feed | 0.0165 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility double-ended inserts for external and internal grooving and profiling at low-to-medium feeds. Full radius inserts which can cut arcs to 250°. | Country of Origin | Israel |
| Remarks | Can cut arcs to 250° DMIN for internal application= .807 For more detailed cutting data, click on More Info |
Shipping Info
Package Weight
0.013
